Stainless Steel Scissor Lift Table Low Profile Lift Table for Food & Medical Industry
Features:
- Load Capacity 2200 lbs
- Table dimension 57.1"x44.9"
- Lowered height 3.3"
- Raised height 33.9"
- Full stainless steel 316 material
- External power pack equipped with stainless steel cover.
- Meet EN1570 norm.
Description:
This low profile lift table is made of full stainless steel that is special suitable for wet areas, corrosion resistant and withstand harsh environments.
Widely used in food process and medical industry.
Parameters:
| Model | | HY1001 | HY1002 | HY1003 | HY1004 | HY1005 |
| Capacity | kg(lb.) | 1000(2200) |
| Platform size(L*W) | mm(in.) | 1450*1140 | 1600*1140 | 1450*800 | 1600*800 | 1600*1000 |
| (57.1*44.9) | (63*44.9) | (57.1*31.5) | (63*31.5) | (63*40) |
| Min. Height | mm(in.) | 85(3.3) |
| Max.height | mm(in.) | 860(33.9) |
| Stroke | mm(in.) | 775(30.5) |
| Lifting time | (second) | 25 |
| Power Pack | | 380V/50HZ,AC 0.75KW |
| Net Weight | kg(lb.) | 357(785.4) | 364(800.8) | 326(717.2) | 332(730.4) | 352(774.4) |

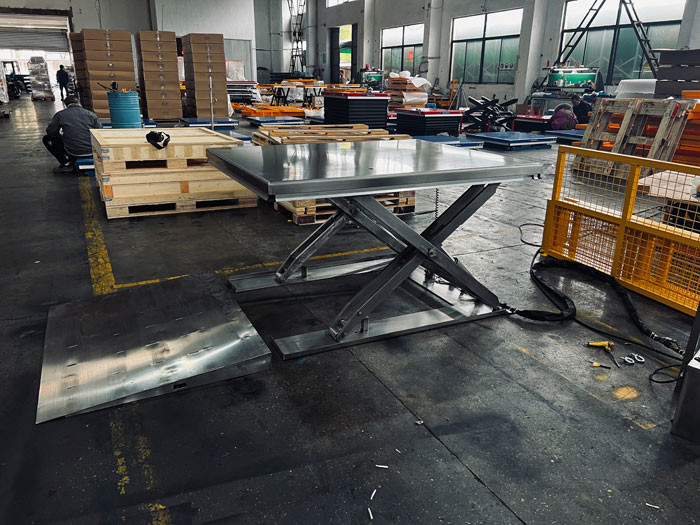

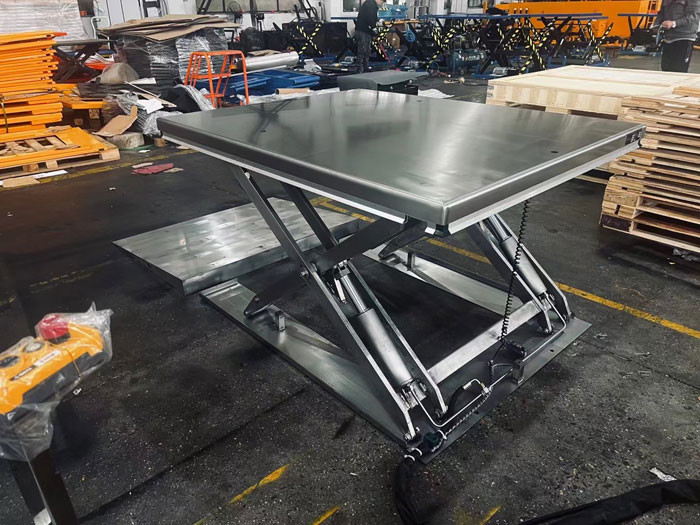

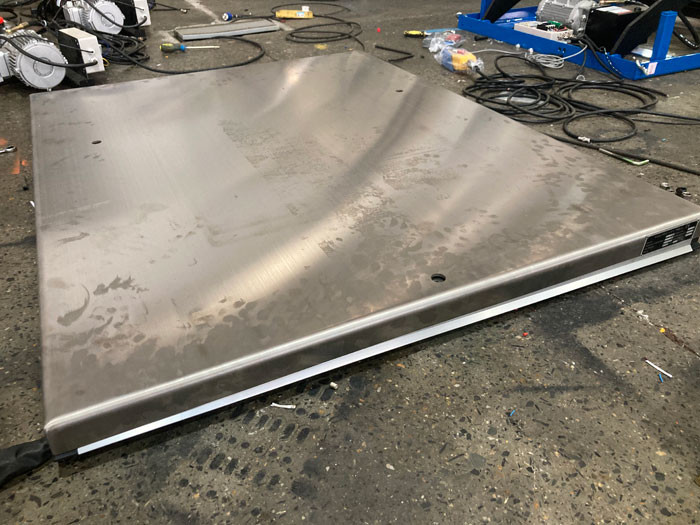

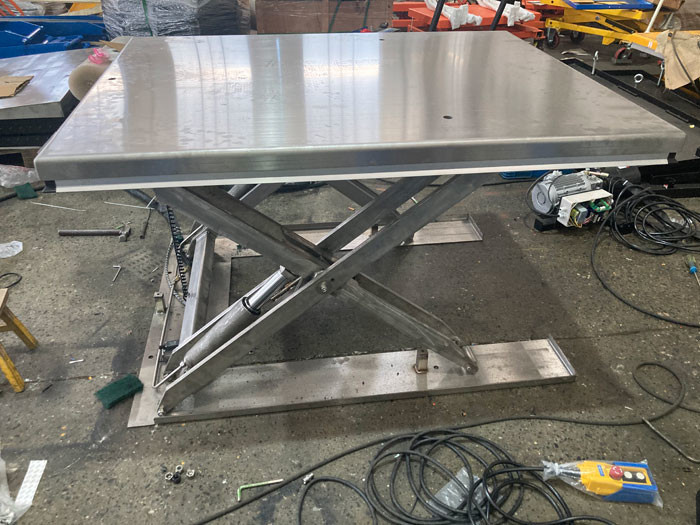

Images:
FAQ:
Q: What about the quality of the products?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of lift tables before shipment;
5. If needed, inspection by buyer.
Q: Do you accept customized design? Do you offer OEM & ODM service?
A: Yes,of course! We have over 10 years' experience in customized design product,expecially lift tables.
Contact us for your special needs:
Email: sales@buy-tool.com
Mobile/Whatsapp: +86-15852735173
Q: What information should I provide for a customized order?
A: The more information you provide, the accurate solution we can prepare for you.Such as:
1.control by manual or electric
2.stationary or mobile lift tables
3.power source/voltage demand
4.load capacity
5.lifting heigh(min.height and max height)
6.table size
Q: What is your MOQ?
A: One unit.The more the better.The price is negotiable for large quantity.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
